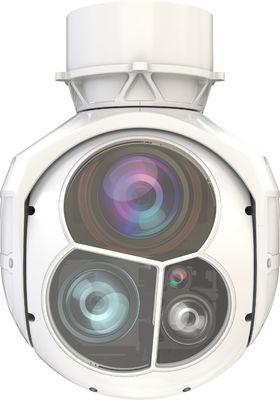

Two Axes Two Metal Frames Gyro Stabilized Three Sensors EO Pod Of 155MM Diameter
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | Qiansight |
| Model Number | HS101C-DT-155 |
| Minimum Order Quantity | negotiated |
| Price | negotiated |
| Packaging Details | 1 unit/Explosion-proof box, and then into an export carton |
| Delivery Time | 30-35 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 1000 units/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Metal | Color | White |
|---|---|---|---|
| Size | Dia 155MM | Len 1 | TV: 1920*1080 F:4.3-129mm |
| Len 2 | IR: 640*512 F1:55mm | Len 3 | Laser: Range 50-5000m |
| Power | 18～32VDC | Weight | ≤ 2.2 KG |
| Highlight | 155MM Diameter EO Pod,Metal Frames EO Pod,Three Sensors EO Pod |
||
Product Description
Product of Two Axes two frams Gyro-stabilized three sensors EO Pods with laser rang finder
This model is a two-axis, two-frame gyro-stabilized three-sensor EO pod, featuring a compact, lightweight, and integrated industrial design. It is equipped with a 30x continuous optical zoom visible light camera and a long-wave uncooled infrared imaging assembly. The system includes built-in anti-latency modules, AI object recognition, and multiple objects tracking modules. It is primarily used for imaging, detection, tracking, and recognition of ground objects in surveillance applications.It meets the needs for various operations such as line inspection, accident investigation, emergency response, law enforcement evidence collection, and counter-terrorism and anti-riot activities.
Technical Parameter of Two Axes two frams Gyro-stabilized three sensors
| Laser Ranging | TV |
| Band 1535nm | Band 0.4μm～0.9μm |
| Ranging Range 50m～5000m | Resolution Ratio 1920×1080 |
| Range Accuracy ±1m | Focal Length F=4.3～129mm |
| Range Frequency 1～10Hz | Viewing Angle 63.7°～ 2.3° |
| Servo | Optical Zoom 30X |
| Heading Range N×360° | Detection Range human6km,vehicle15km |
| Pitch Range -120°～40° | Recognition Distance human2km,vehicle8km |
| consistencyinaccuracy ≤100urad(2°/1Hz,1°/2Hzfrequencyfluctuation) | IR |
| AngularMeasurementAccuracy ≤1mrad | Band 8μm～12μm |
| Angular Velocity ≥60°/s | Resolution Ratio 640×512 |
| Angular Acceleration ≥150°/s² | Pixel 12µm |
| Single Object tracking | Field of View Angle 8°×6.4° |
| Target Type generic objectives | Focal Length 55mm/F1.0 |
| Tracking Rate ≥32pixel/frame | Detection Range human1.8km,vehicle7.8km |
| Update Frame rate ≥50FPS | Recognition Distance human0.4km,vehicle1.9km |
| Multiple Objects tracking | Interface Size |
| Object Type human, vehicle, ships, airplanes | Dimension ≤Φ155mm×205mm |
| Recall ≥90% | Weight ≤2.2kg |
| Accuracy ≥80% |
18～32VDC(featuring spike and Power Supply surge protection capabilities) |
| Minimum Target Size 32×32 @1080P | |
| Tracking Target Quantity ≥20 | Consumption 20w(average)50w(peak value) |
| Tracking Transition Rate ≤15% | Communication Interface Serial port,100Mbps network |
| Tracking Transition Rate ≥20FPS | Video Interface 1Gbps,SDI |
| Video and Storage | Environment Temperature |
| Photo Format JPEG | Operation Temperature -40℃～ 60℃ |
| Video Format MP4 | Storage Temperature -45℃～70℃ |
| Encoding Format H.264,H.265 | Impact 20g,11ms |
| Video Protocal TS,RTSP,RTMP,UDP etc | |
| Storage 128GB |
Key Features of 2 Axes 2 frams Gyro-stabilized 3 cameras optical pod
AI object recognition: human, vehicle, ship, and objecy recognition
AI assisted locking: automatic object recognition and tracking
AI Anti occlusion Tracking: Object Recognition Assisted Stable Tracking ● Two-axis stability: comprehensive isolation of carrier angular motion ● Two-sensor photography and recording: supports post analysis
Electronic image stabilization: sub-pixel level stable experience
Anti link delay: moving objects, precise locking
Multi target recognition and tracking: supports keyboard locking of objects and voice locking of objects
Web page remote upgrade: remote support, second level response
Recognition effect
