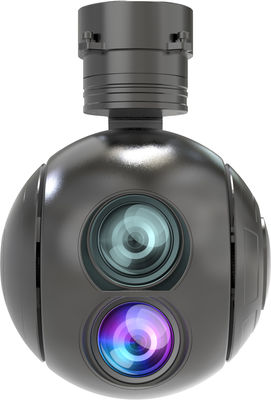

Metal Frame 64MM Dia Eo Gimbal Dual Axes Dual Sensors Fixed Focus TV Cameras With Two Different FOV For Surveillance
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | Qiansight |
| Model Number | HS101C-DD-64B |
| Minimum Order Quantity | negotiated |
| Price | negotiated |
| Packaging Details | 1 unit/Explosion-proof box, and then into an export carton |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 1000 units/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Metal | Color | Black |
|---|---|---|---|
| Size | Dia 64 MM | Len 1 | TV: 3840*210; Fixed Focus: 10.44 MM |
| Len 2 | TV: 3840*210; Fixed Focus: 25 MM | Power | 11～28VDC |
| Interface | Serialport、SBUS,100Mbps Network | Weight | ≤ 240 G |
| Highlight | Dual Sensors Fixed Focus TV Cameras,Fixed Focus TV Cameras For Surveillance |
||
Product Description
Introduction of dual axes dual sensors fixed-focus TV cameras
This model is a compact and lightweight two-axis gyro-stabilized gimbal with dual sensors, featuring fixed-focus TV cameras with two different fields of view (FOV). It incorporates anti-latency modules, AI-powered objective recognition, and multi-objective tracking capabilities. Tailored for surveillance applications, it excels in imaging, detecting, tracking, and identifying ground targets. It meets a variety of operational needs including line inspection, accident investigation, emergency response, law enforcement, evidence gathering, counter-terrorism, and anti-riot activities.
Technical Parameter of TV Cameras with Two Different FOV for Surveillance
|
Wide-Field Visible Light |
Servo |
|
|
Band 0.4μm～0.9μm |
Heading Range |
±150° |
|
Resolution Ratio 3840×2160 |
Pitch Range |
-90°～30° |
|
Focal Length 10.44mm |
Angular Measurement Accuracy |
≤0.3° |
|
Viewing Angle 42.1°×23.7° |
Angular Velocity |
≥60°/s |
|
Detection Range human 2.4km - vehicle10.0 km |
Angular Acceleration |
≥150°/s² |
|
Recognition Distance human 0.6km - vehicle2.6 km |
Video and Storage |
|
|
Narrow-Field Visible Light |
Photo Format |
JPEG |
|
Band 0.4μm～0.9μm |
Video Format |
MP4 |
|
Resolution Ratio 3840×2160 |
Encoding Format |
H.264,H.265 |
|
Focal Length 25mm |
Video Protocal |
TS,RTSP,RTMP,UDP etc |
|
Field of View Angle 14.7°×11.1° |
Storage |
128GB |
|
Detection Range human 5.3km - vehicle22.0km |
Interface Size |
|
|
Recognition Distance human 1.3km - vehicle5.7 km |
Dimension |
≤Φ64mm×90mm |
|
Single Object tracking |
Weight |
≤240g |
|
Target Type generic objectives |
Power Supply |
11～28VDC |
|
Tracking Rate ≥32pixel/frame |
Consumption |
20w(average)50w(peak value) |
|
Update Frame rate ≥50FPS |
Interface |
Serialport,SBUS,100Mbps network |
|
Multiple Objects tracking |
Video Interface |
100Mbps network |
|
Object Type human, vehicle, ships, airplanes |
|
|
|
Recall ≥90% |
||
|
Accuracy ≥80% |
||
|
Minimum Target Size 32×32 @1080P |
||
|
Tracking Target Quantity ≥20 |
||
|
Tracking Transition Rate ≤15% |
||
|
Tracking Transition Rate ≥20FPS |
||
|
Environment Temperature |
||
|
Operation Temperature -40℃～ 60℃ |
||
|
Storage Temperature -45℃～70℃ |
||
|
Impact 400g |
||
Key Features of 2 axes 2 cameras optical gimbal
AI object recognition: human, vehicle, ship, and target recognition
AI assisted locking: automatic target recognition and tracking
AI Anti occlusion Tracking: Object Recognition Assisted Stable Tracking Two-axis stability: comprehensive isolation of carrier angular motion
Two sensors photography and recording: supports post analysis
Electronic image stabilization: sub-pixel level stable experience
Anti link delay: moving objects, precise locking
Multiple objects recognition and tracking: supports keyboard locking of objects and voice locking of objects
Web page remote upgrade: remote support, second level response
Recognition effect
