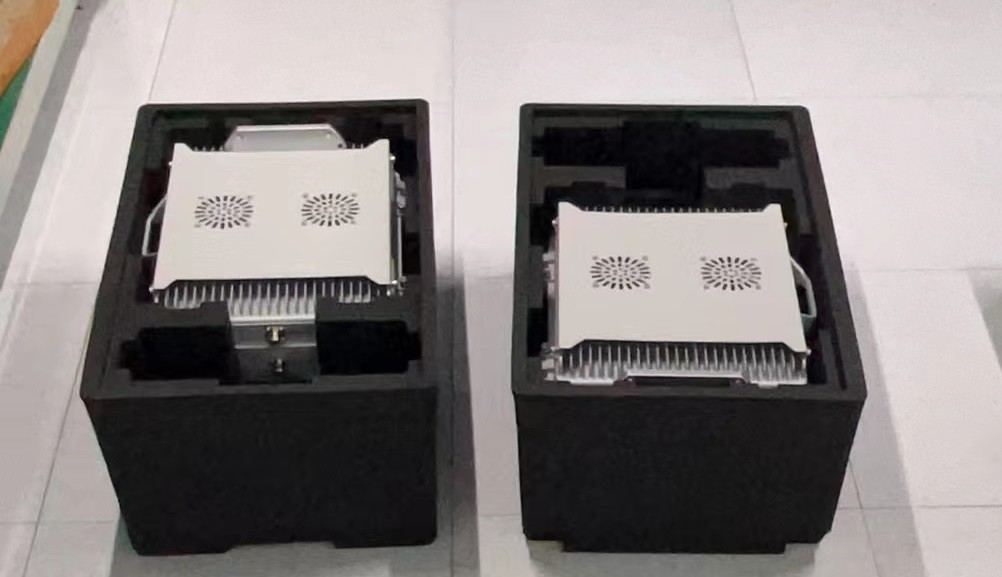

Fixed Countermeasure Directional Drone Jammer 5KM Detection 3KM Jamming HS102C-FDC-B
| Place of Origin | china |
|---|---|
| Brand Name | HSQH |
| Model Number | HS102C-FDC-B |
| Minimum Order Quantity | 1 |
| Delivery Time | 30-50 working days |
| Payment Terms | T/T |
| Supply Ability | 10+set+month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x| Highlight | Fixed Countermeasure Directional Drone Jammer,3KM Jamming Directional Drone Jammer |
||
|---|---|---|---|
The fixed drone detection and countermeasure system consists of full-spectrum detection and jamming equipment. The detection equipment enables the discovery of drones across the full frequency range, with capabilities such as drone detection and warning, model identification, positioning and tracking, and trajectory playback. The omnidirectional full-band jamming equipment disrupts drone satellite navigation signals or blocks communication links between drones and remote controllers by emitting electromagnetic waves, causing drones to land forcibly or return.
| Detection Mode | Radio Passive Detection |
| Detection Bands | 300MHz ~ 6GHz Full-band Detection |
| Direction-finding Accuracy | ≤3° (RMS) |
| Detection Radius | ≥5km (in open areas, with 0.1W drone transmit power) |
| Detection Dimensions | ≤φ610mm × 440mm (height) |
| Overall Weight | ≤16KG |
| Countermeasure Mode | Supports DDS frequency sweeping. Switchable to FSK, BPS, QPSK, QAM, 16AQM, 64QAM, OFDM modulation modes. |
| Jamming Bands | Configurable jamming channel output within 300MHz-6000Mhz band |
| Jamming Distance | ≥3km (against a 0.1W emitter) |
| Equipment Dimensions | ≤470mm × 400mm × 170mm; Antenna height ≤850mm |
| Equipment Weight | ≤18kg |
