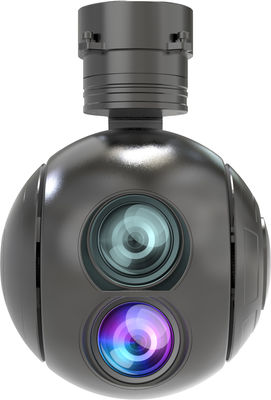

Metal Frame Three Axes Dual Sensors Gimbal with 30X Optical Zoom TV Camera and IR Image Compenents
| Place of Origin | Chengdu, China |
|---|---|
| Brand Name | Qiansight |
| Model Number | HS101C-TD-125 |
| Minimum Order Quantity | negotiated |
| Price | negotiated |
| Packaging Details | 1 unit/explosion-proof box and then into an exoport CTN |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 1000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | Dia 125MM | Material | Metal |
|---|---|---|---|
| Color | Black | Len 1 | TV: 1920*1080 F:4.3-129 MM |
| Len 2 | IR: 640*512 F1.0:35 MM | Power | 11～28VDC |
| Storage | 128GB | Weight | ≤ 1.1 KG |
| Highlight | 30X Optical Zoom TV Camera,IR Image Compenents Gimbal |
||
Product Description
Brief Introduction of Three Axes Dual Sensors Gimbal for UAV System
This model is a three-axis gyro-stabilized two-sensor gimbal, featuring a compact, lightweight, and integrated industrial design.It is equipped with a 30x continuous optical zoom TV camera and a long-wave uncooled infrared imaging compenents.The system is built in anti-latency modules,AI objective recognition and multi-objective tracking modules. It is mainly used for imaging, detection,tracking and recognition of ground objective in surveillance applications. It meets the needs for various operations such as line inspection, accident investigation,emergncy rescue, law inforcement, evidence collection, counter-terrorism and anti-riot activities.
Technical Parameter for 30x optical zoom TV camera and IR camera
|
TV |
IR |
|
|
Band 0.4μm～0.9μm |
Band |
8μm～12μm |
|
Resolution Ratio 1920×1080 |
Resolution Ratio |
640×512 |
|
Focal Length F=4.3～129mm |
Pixel |
12µm |
|
Viewing Angle 63.7°～2.3° |
Focal Length |
35mm/F1.0 |
|
Optical Zoom 30X |
Field of View Angle |
12.4°×9.9° |
|
Detection Range human 6km - vehicle15 km |
Temperature Measurement |
support |
|
Recognition Distance human 2km - vehicle 8km |
Detection Range |
human1.2km,human5.0km |
|
Single Object tracking |
Recognition Distance |
human0.4km,human1.2km |
|
Target Type generic objectives |
Servo |
|
|
Tracking Rate ≥32pixel/frame |
Heading Range |
N×360° |
|
Update Frame rate ≥50FPS |
Pitch Range |
-120°～40° |
|
Multiple Objects tracking |
Rolling Range |
-45°～45° |
|
Object Type human,vehicle,ships,airplanes |
Video and Storage |
|
|
Recall ≥90% |
Photo Format |
JPEG |
|
Accuracy ≥80% |
Video Format |
MP4 |
|
Minimum Target Size 32×32 @1080P |
Encoding Format |
H.264,H.265 |
|
Tracking Target Quantity ≥20 |
Video Protocal |
TS,RTSP,RTMP,UDP etc |
|
Tracking Transition Rate ≤15% |
Storage |
128GB |
|
Tracking Transition Rate ≥20FPS |
|
|
|
Interface Size |
||
|
Dimension ≤Φ125mm×185mm |
||
|
Weight ≤1.1kg |
||
|
Power Supply 11～28VDC |
||
|
Consumption 20w(average)50w(peak value) |
||
|
Communication Interface Serialport,SBUS,100Mbps network |
||
|
Video Interface 100Mbps network |
||
|
Environment Temperature |
||
|
Operation Temperature -20℃～ 60℃ |
||
|
Storage Temperature -40℃～70℃ |
||
Key Features for 3 Axes 2 sensors Intelligent Gimbal
AI object recognition: human, vehicle, ship, and target recognition
AI assisted locking: automatic target recognition and tracking
AI Anti occlusion Tracking: Object Recognition Assisted Stable Tracking Three-axis stability: comprehensive isolation of carrier angular motion
Two sensors photography and recording: supports post analysis
Electronic image stabilization: sub-pixel level stable experience
Anti link delay: moving objects, precise locking
Multiple objects recognition and tracking: supports keyboard locking of objects and voice locking of objects
Web page remote upgrade: remote support, second level response
Recognition effect
