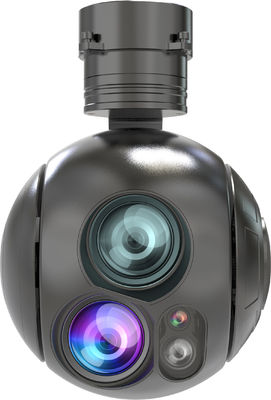

Three Axes Three Sensors 30x Optical Zoom And Infrared Imaging Eo Ir Gimbal Of 125mm Diameter For Evidence Collection
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | Qiansight |
| Model Number | HS101C-TT-125 |
| Minimum Order Quantity | negotiated |
| Price | negotiated |
| Packaging Details | 1 unit/Explosion-proof box, and then into an export carton |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 1000 units/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Metal | Color | Black |
|---|---|---|---|
| Size | Dia 125MM | Len 1 | TV: 1920*1080 F:4.3-129 MM |
| Len 2 | IR: 640*512 F1:35 MM | Len 3 | Laser: Range 20-3000 M |
| Storage | 128GB | Weight | ≤1.2 Kg |
| Highlight | 125mm Diameter EO Ir Gimbal,Infrared Imaging EO Ir Gimbal,30x Optical Zoom EO Ir Gimbal |
||
Product Description
Introduction of three Axes Three Sensors 30x Optical Zoom and Infrared Imaging
This model is a three-axis gyro-stabilized three-sensor gimbal, featuring a compact, lightweight, and integrated industrial design.It is equipped with a 30x continuous optical zoom TV camera and a long-wave uncooled infrared imaging compenents.The system is built in anti-latency modules,AI objective recognition and multi-objective tracking modules. It is mainly used for imaging, detection,tracking and recognition of ground objective in surveillance applications. It meets the needs for various operations such as line inspection, accident investigation,emergncy rescue, law inforcement, evidence collection, counter-terrorism and anti-riot activities.
Technical Specifications of 3 Axes 3 Sensors gimbal for UAV System
| TV |
| Band 0.4μm～0.9μm |
| Resolution Ratio 1920×1080 |
| Viewing Angle F=4.3～129mm |
| Viewing Angle 63.7°～ 2.3° |
| Optical zoom 30X |
| Detection Range human 6km - vehicle15 km |
| Recognition Distance human 2km - vehicle 8km |
| Single Object Tracking |
| Object Type generic objectives |
| Tracking Rate ≥32pixel/frame |
| Update Frame Rate ≥50FPS |
| Multiple Objects Tracking |
| Update Frame Rate human, vehicle, ships, airplanes |
| Recall ≥90% |
| Accuracy ≥80% |
| Minimum object size 32×32 @1080P |
| Tracking object quantity ≥20 |
| Tracking jump rate ≤15% |
| Update frame rate ≥20FPS |
| Interface size |
| Dimension ≤Φ125mm×185mm |
| Weight ≤1.2kg |
| Power supply 11 ～ 28VDC |
| Consumption 20w(average)50w(peak value) |
| Communication Interface Serial port,SBUS, 100Mbps network |
| Video interface 100Mbps network |
| Environment temperature |
| Operation temperature -20℃～ 60℃ |
| Storage temperature -40℃～70℃ |
| IR Camera | |
| Band | 8μm～12μm |
| Resolution ratio | 640×512 |
| Pixel | 12µm |
| Focal length | 35mm/F1.0 |
| Field of view angle | 12.4°×9.9° |
| Temperature measurement | support |
| Detection range | human 1.2km - vehicle 4.5km |
| Recognition distance | human 0.4km - vehicle 1.2km |
| Laser Range Finder | |
| Band | 1535nm |
| Ranging range | 20m～3000m |
| Range Accuracy | ±1m |
| Ranging frequency | 1～10Hz |
| Servo control | |
| Heading range | N×360° |
| Pitch range | -120°～40° |
| Rolling range | -45°～45° |
| Video and Storage | |
| Photo Format | JPEG |
| Video Format | MP4 |
| Encoding format | H.264,H.265 |
| Video Protocol | TS,RTSP,RTMP,UDP etc |
| Storage | 128GB |
Key feactures of the 3 axes 3 cameras optcial gimbal
AI object recognition: human, vehicle, ship, and target recognition
AI assisted locking: automatic target recognition and tracking
AI Anti occlusion Tracking: Object Recognition Assisted Stable Tracking Three-axis stability: comprehensive isolation of carrier angular motion
Two sensors photography and recording: supports post analysis
Electronic image stabilization: sub-pixel level stable experience
Anti link delay: moving objects, precise locking
Multiple objects recognition and tracking: supports keyboard locking of objects and voice locking of objects
Web page remote upgrade: remote support, second level response
Recognition effect
