Multi Band Countermeasure Drone Gun Jamming Distance 800-2500m HS102B-PC-A ;
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x| Weight | 5kg | Size | 730x150x300mm |
|---|---|---|---|
| Jamming Distance | 800-2500m | ||
| Highlight | 2500m portable anti drone jammer,2500m portable drone counter equipments,multi band portable anti drone jammer |
||
1. Product Features
1: Utilizes UHF broadband seamless jamming technology
2: Single circuit control with battery level indication
3: The higher the effective power (channel power), the greater the interference distance.
4: Segmented interference, according to the use of demand, select the appropriate frequency band to turn on
5: Adopt a plug-in battery, can replace the battery at any time to ensure long-term use
6: Built-in heat dissipation teeth, can circulate heat dissipation, and increase the stability of the equipment for a long time work
7:6 SMA/N type interfaces for connection to directional antennas:(400M/900M/1.2G/1.5G/2.4G/5.8G)
8: One power charging port (DC24V IN)
2. Equipment working frequency:
| output | working frequency | Average output power | Average output power |
| 400M | 400-450MHz | 47dBm | 10dBm/30KHz(min) |
| 900M | 840-930MHz | 47dBm | 10dBm/30KHz(min) |
| 1.2G | 1160-1280MHz | 47dBm | 10dBm/30KHz(min) |
| 1.5G | 1550-1630MHz | 47dBm | 10dBm/30KHz(min) |
| 2.4G | 2380-2500MHz | 47dBm | 10dBm/30KHz(min) |
| 5.8G | 5720-5880MHz | 47dBm | 10dBm/30KHz(min) |
| Power supply:AC220V-DC24V jamming distance:800-2500m | |||
| Electricity consumption:360W Weight: 5Kg Dimensions (W×H×L):730x150x300mm | |||
4. Processes:
Multi-band Drone Countermeasure Gun combines a variety of drone use bands as well as unpublished bands; during use, please choose to use the appropriate band to counter the drone.

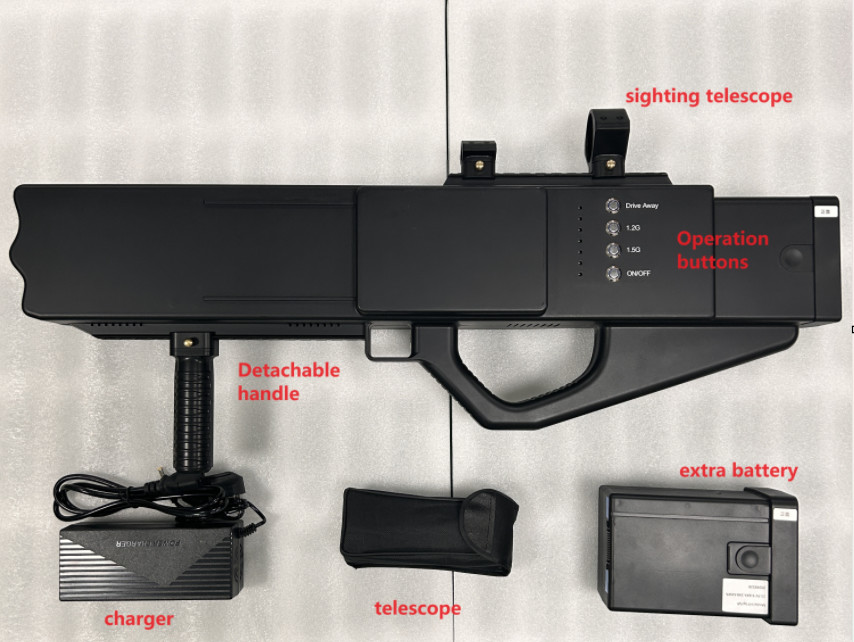

- Install the battery and scope,Ensure that the battery is fully charged, then press the ON button.
- Orient the gun towards the direction and orientation of the drone's arrival.
- Press the Drive Away button, that start the 400M,900M,2.4G and 5.8G modules.
- Press the Drive Away, 1.2G and 1.5G buttons together. That can cause the drone to make an emergency landing.
- Press the OFF button to turn off the device, and disassemble the equipment one by one ,then put it back into the packaging box.
