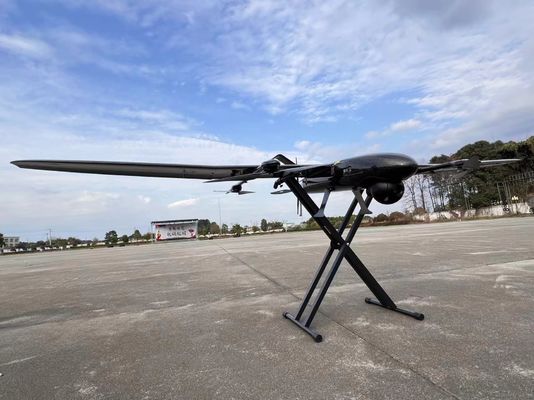

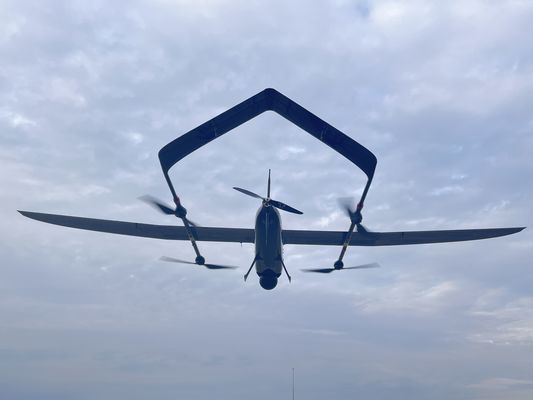

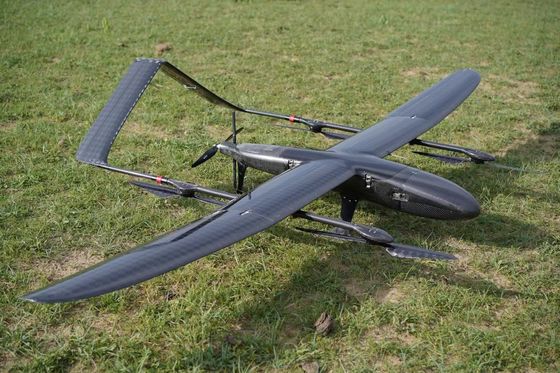

150km Long Endurance Long Range VTOL UAV Drone 6hous Vtol Unmanned Aircraft HS101A-VT-3000
| Place of Origin | china |
|---|---|
| Brand Name | HSQH |
| Model Number | HS101A-VT-3000 |
| Minimum Order Quantity | 1 |
| Delivery Time | 15-30 days |
| Payment Terms | T/T |
| Supply Ability | 50+set+month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | vtol uav drone 6hous,6hous vtol unmanned aircraft,long endurance long range vtol uav |
||
|---|---|---|---|
Product Description
| Image transmission distance | 150km |
| Operating temperature | -30℃ to 70℃; |
| Storage temperature | -25℃ to 60℃; |
| Wind resistance | Lv.7 |
| Class of protection | IP65 |
| Battery capacity | 8S 60000mAH |
| Uav development size | 3000 *1650 *570mm |
| Box size | 1365 * 560* 405mm； |
| Image transmission function | Supports unicast, broadcast, and roaming network transmission |
| GNSS system | Support GPS, GLONASS, BDS Samsung six-band signal |
|
Safety function |
Automatic return along the original path, no-fly area early warning, route height alarm, take-off self-check, nearby emergency landing, link self-correction, anti-interference, abnormal situation alarm and other functions; |
| Automatic flight | Three redundancy automatic flight function |
| Ground station software | It has the functions of manual flight, automatic flight planning and loading control |
| Other Features 1 | Support live broadcast function and track playback function; |
| Telemetry and remote control data and image links | ||
| Control distance | 150km | |
| Frequency hopping function | It can adjust the frequency according to the wireless environment within a certain range | |
| Operating frequency | 1427.9MHz~ 1447.9MHz | |
| delay | 200ms | |
|
Operating temperature |
-30℃ to 70℃ | |
| port | Ethernet port, serial port | |
| Power control | Automatic power control | |
| Remote parameter configuration | Supports remote WBEUI configuration | |
| anti-interference | Support frequency hopping | |
| Networking support | Supports a maximum of 16 nodes | |
|
Image transmission function |
It integrates 4/5G module and wireless image transmission module, which can transmit high- definition images to the scene and the rear through 4/5G and wireless transmission signals at the same time, and the image supports picture-in-picture function. |
|
| Other Features 2 | Support route elevation detection |
|
Beidou short message |
It supports short message forwarding of UAV flight track, fire alarm information, geographical location, latitude and longitude, time, fire point size and other real-time data |
| Front-end fire storage capability | The monitored fire information is stored and managed separately. |
| Remote control | |
| Number of channels | 14 |
| Frequency hopping | FHSS frequency hopping |
| Endurance time | More than 6 hours |
|
Remote control effective distance |
150km |
| Ground terminal | |
| Screen size | 15.6 inches |
| Screen resolution | 1920*1080 |
| Screen brightness | 1000nit |
| Image interface | Standard HDMI interface |
| USB | 2-way USB |
| Net interface | 1 RJ45 network port |
| Inspection item | Testing technical requirements |
| Uav type | Vertical takeoff and landing compound wing UAV |
| Body material | Carbon fiber composite |
| Dynamic system | power-driven |
| Take-off and landing mode | Vertical take-off and landing |
| Endurance time | 360 minutes |
| Maximum load | 2.5kg |
| Cruising speed | 70km/h |
| Maximum flying speed | 100km/h |
| Maximum lifting speed | Rise 4m/s; Drop 4m/s; |
| Maximum flight altitude | 4500m |
| Control radius | 150km |
| Maximum range | 400km |
