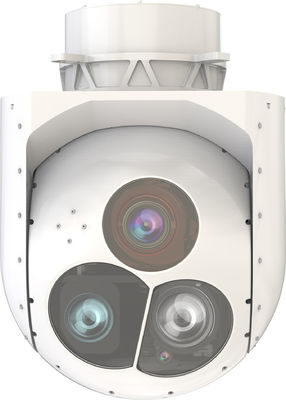

254MM Airborne Electro Optical Pod Dual Axes Three Sensors / TV / IR / Laser For Recognition And Tracking System

Place of Origin Chengdu,China
Brand Name Qiansight
Model Number HS101C-DT-254
Minimum Order Quantity negotiated
Price negotiated
Packaging Details 1 unit/Explosion-proof box, and then into an export carton
Delivery Time 25-30 days
Payment Terms T/T, L/C
Supply Ability 1000 units/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Metal Size Dia 254mm
Len 1 TV: 1920*1080 F:4.3-129mm Len 2 IR: 640*512 F4:20-200mm
Len 3 Laser: Range 100-15000m Video Protocal TS、RTSP、RTMP、UDP Etc
Interface Serial Port、PAL/NTSC、SDI、1Gbps Weight ≤8KG
Highlight

254mm airborne electro optical pod

,

airborne electro optical pod dual axes

,

254mm eo ir pod

Leave a Message
Product Description

Item Information of Dual Axes Three Sensors / TV / IR / Laser for Recognition and tracking system



The item is a two-axis, four-frame gyro-stabilized three-sensor EO Pod, featuring a compact, lightweight, and integrated industrial design. It includes a 30x continuous optical zoom TV camera, a mid-wave cooled infrared imaging assembly, and a laser rangefinder. This model is predominantly employed for imaging, detection, tracking, and recognition of ground targets in surveillance applications. It caters to various operational requirements such as line inspection, accident investigation, emergency response, law enforcement evidence collection, as well as counter-terrorism and anti-riot activities.



Technical Parameter of 2 Axes with Sensors of / TV / IR / Laser for Recognition and tracking



Servo TV
Frame Quantity 4 Band 0.4μm~0.9μm
Heading Range N×360° Resolution Ratio 1920×1080
Pitch Range -120°~40° Focal Length F=4.3~129mm
Angular Measurement Accuracy ≤0.03°(1σ) Viewing Angle 63.7°~ 2.3°
consistency in accuracy ≤50urad(1σ) Optical Zoom 30X
Angular Velocity ≥120°/s Detection Range human6km,vehicle15km
Angular Acceleration ≥180°/s² Recognition Distance human2km,vehicle8km
Single Object tracking IR
Target Type generic objectives Band 3μm~5μm
Tracking Rate ≥32pixel/frame Resolution Ratio 640×512
Update Frame rate ≥50FPS Pixel 15µm
Multiple Objects tracking Field of View Angle 27.5°~2.75°
Object Type human, vehicle, ships, airplanes Focal Length 20~200mm/F4.0
Recall ≥90% Detection Range human4.2km,vehicle18.0km
Accuracy ≥80% Recognition Distance human1.0km,vehicle4.5km
Minimum Target Size 32×32 @1080P Laser Range Finder
Tracking Target Quantity ≥20 Band 1535nm
Tracking Transition Rate ≤15% Ranging Range 100~15000m
Tracking Transition Rate ≥20FPS Range Accuracy ±2m
Interface Size Range Frequency 1~10Hz
Dimension ≤Φ254mm×342mm Video and Storage
Weight ≤8kg Photo Format JPEG
Power Supply 28VDC(18~36VDC)(featuring spike and surge protection capabilities) Video Format MP4
Encoding Format H.264,H.265
Consumption 20w(average)50w(peak value) Video Protocal TS,RTSP,RTMP,UDP etc
Interface Serial port,PAL/NTSC,SDI,1Gbps Storage 128GB
Environment Temperature
Operation Temperature -40℃~ 60℃
Storage Temperature -45℃~70℃
Impact 20g,11ms





Key Features for Dual Axes Three Sensors EO Pod for UAV Recognition and tracking system



AI object recognition: human, vehicle, ship, and target recognition
AI assisted locking: automatic target recognition and tracking
AI Anti occlusion Tracking: Object Recognition Assisted Stable Tracking Two-axis stability: comprehensive isolation of carrier angular motion
Two sensors photography and recording: supports post analysis
Electronic image stabilization: sub-pixel level stable experience
Anti link delay: moving objects, precise locking
Multiple objects recognition and tracking: supports keyboard locking of objects and voice locking of objects
Web page remote upgrade: remote support, second level response

Recognition effect
