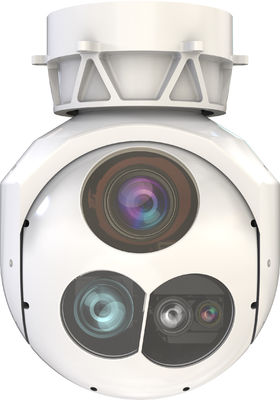

200MM Two Axes 3Sensors Electro Optical Pod For Surveillance And Recognition Eo Gimbal



This EO Pod is a two-axis, two-frame unit, featuring a built-in 30x continuous optical zoom TV camera, a mid-wave cooled infrared imaging assembly, and a laser illuminator. It includes integrated anti-latency modules, AI object recognition, and multi-object tracking capabilities. The QG-200T is predominantly employed in surveillance applications such as imaging, detection, positioning, guidance, tracking, and ground object recognition. Its design caters to a wide range of operations including line inspection, accident investigation, emergency response, law enforcement evidence collection, as well as counter-terrorism and anti-riot activities.

Parameter of 2 Axes 3 Sensors Electro Optical Pod for Surveillance and Object Recognition



Servo		TV
Heading Range N×360°		Band	0.4μm～0.9μm
Pitch Range -120°～40°		Resolution Ratio	1920×1080
consistency in accuracy ≤100urad(2°/1Hz,1°/2Hzfrequencyfluctuation)		Focal Length	F=4.3～129mm
AngularMeasurementAccuracy ≤1mrad		Viewing Angle	63.7°～ 2.3°
Angular Velocity ≥60°/s		Optical Zoom	30X
Angular Acceleration ≥150°/s²		Detection Range	human6km,vehicle15km
Single Object tracking		Recognition Distance	human2km,vehicle8km
Target Type generic objectives		IR
Tracking Rate ≥32pixel/frame		Band	3μm～5μm
Update Frame rate ≥50FPS		Cool-down Time	≤6min
Multiple Objects tracking		Resolution Ratio	640×512
Object Type human, vehicle, ships, airplanes		Pixel	15µm
Recall ≥90%		Focal Length	40～220mm zoom/F4.0
Accuracy ≥80%		Field of View Angle	13.75°～2.5°
Minimum Target Size 32×32 @1080P		Detection Range	human4.6km,vehicle20.0km
Tracking Target Quantity ≥20		Recognition Distance	human1.1km,vehicle5.0km
Tracking Transition Rate ≤15%		Laser Range Finder
Tracking Transition Rate ≥20FPS		Band	1064nm
Interface Size		Pulse Energy	40mJ
Dimension ≤Φ200mm×260mm		Ranging Range	300m～8000m
Weight ≤5.5kg		Range Accuracy	±5m
Power Supply	18～32VDC(featuring spike and surge protection capabilities)	Illumination Encoding Method and Pattern	Precise Frequency Code, with a single illumination duration of not less than 25 seconds (encoding can be set).
Consumption 20w(average)50w(peak value)		Video and Storage
Communication Interface Serial port,1Gbps		Photo Format	JPEG
Video Interface 1Gbps,SDI		Video Format	MP4
Environment Temperature		Encoding Format	H.264,H.265
Operation Temperature -40℃～ 60℃		Video Protocal	TS,RTSP,RTMP,UDP etc
Storage Temperature -45℃～70℃		Storage	128GB
Impact 20g,11ms





Key Features of Dual Axes Three Sensors Electro Optical Pod for UAV System

AI object recognition: human, vehicle, ship, and target recognition
AI assisted locking: automatic target recognition and tracking
AI Anti occlusion Tracking: Object Recognition Assisted Stable Tracking Two-axis stability: comprehensive isolation of carrier angular motion
Two sensors photography and recording: supports post analysis
Electronic image stabilization: sub-pixel level stable experience
Anti link delay: moving objects, precise locking
Multiple objects recognition and tracking: supports keyboard locking of objects and voice locking of objects
Web page remote upgrade: remote support, second level response

Recognition effect
