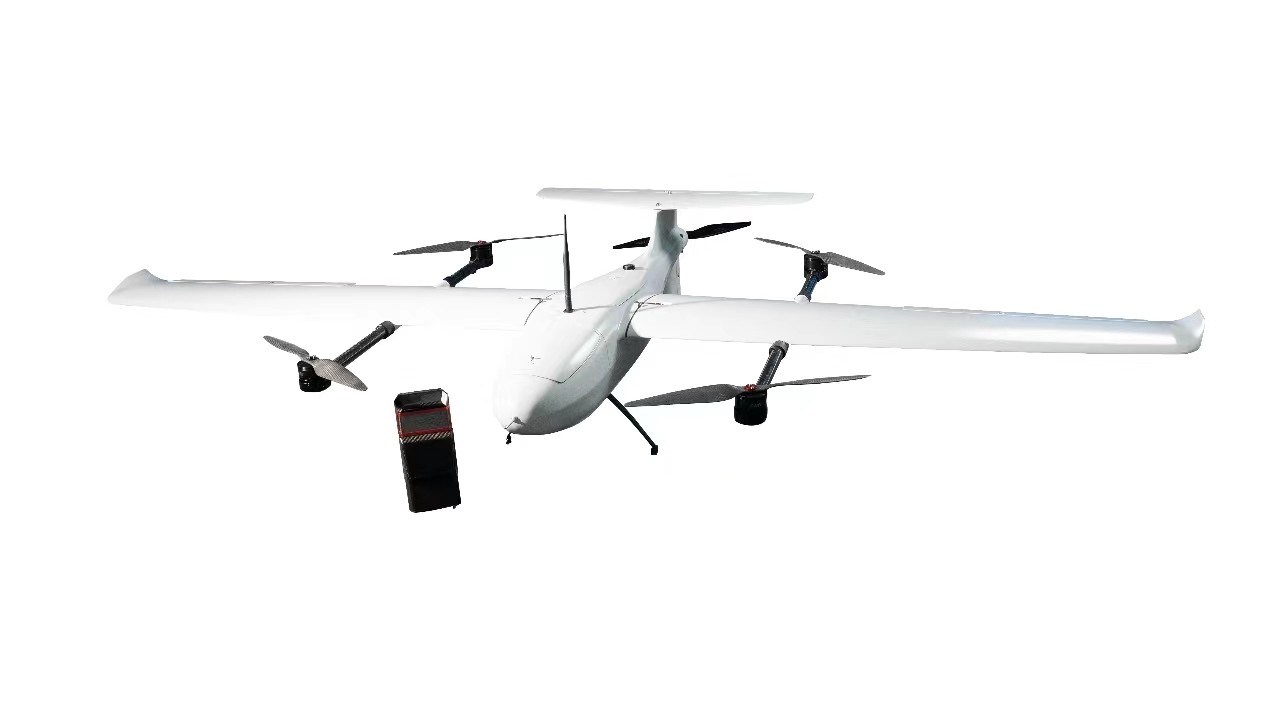

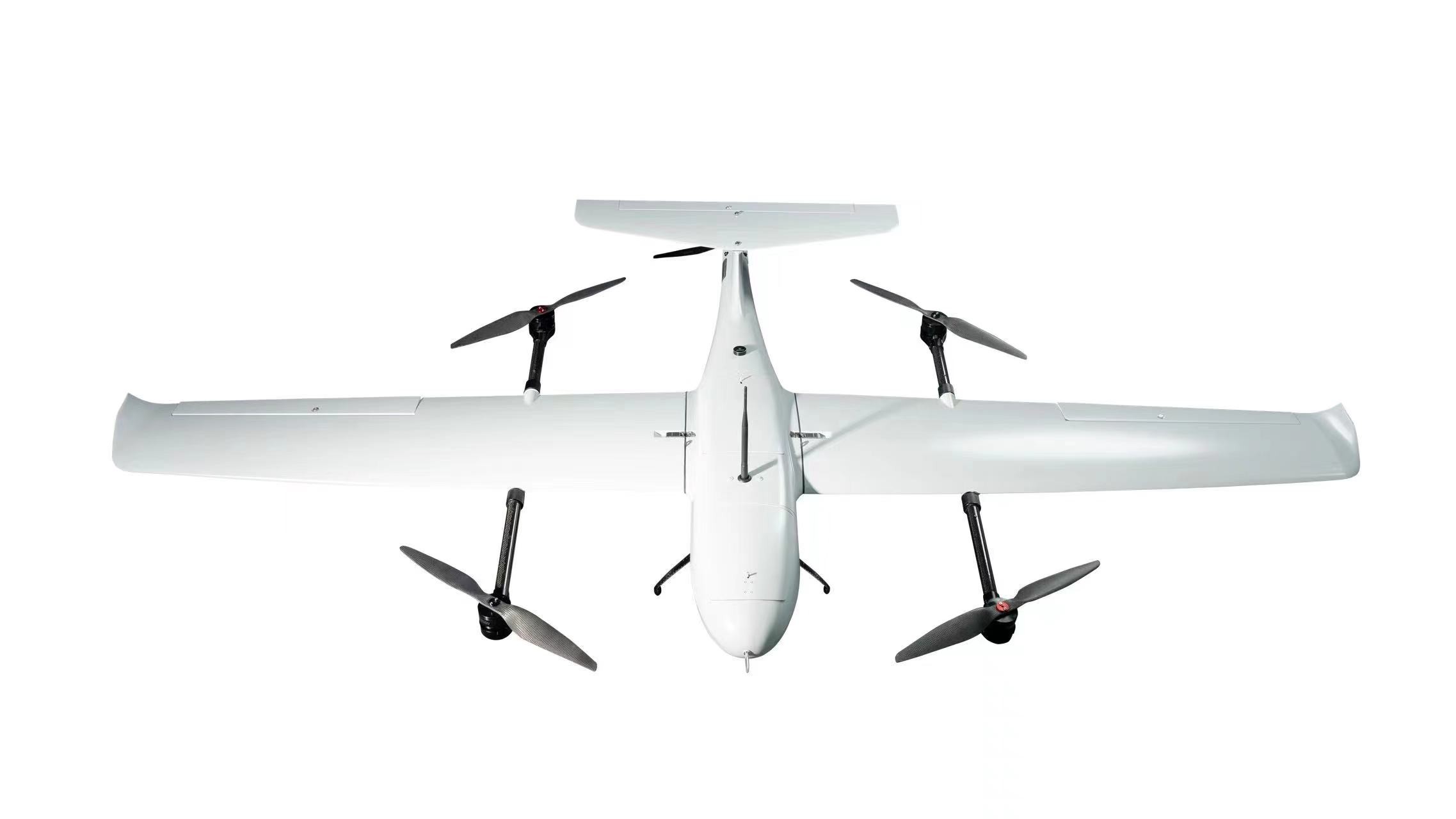

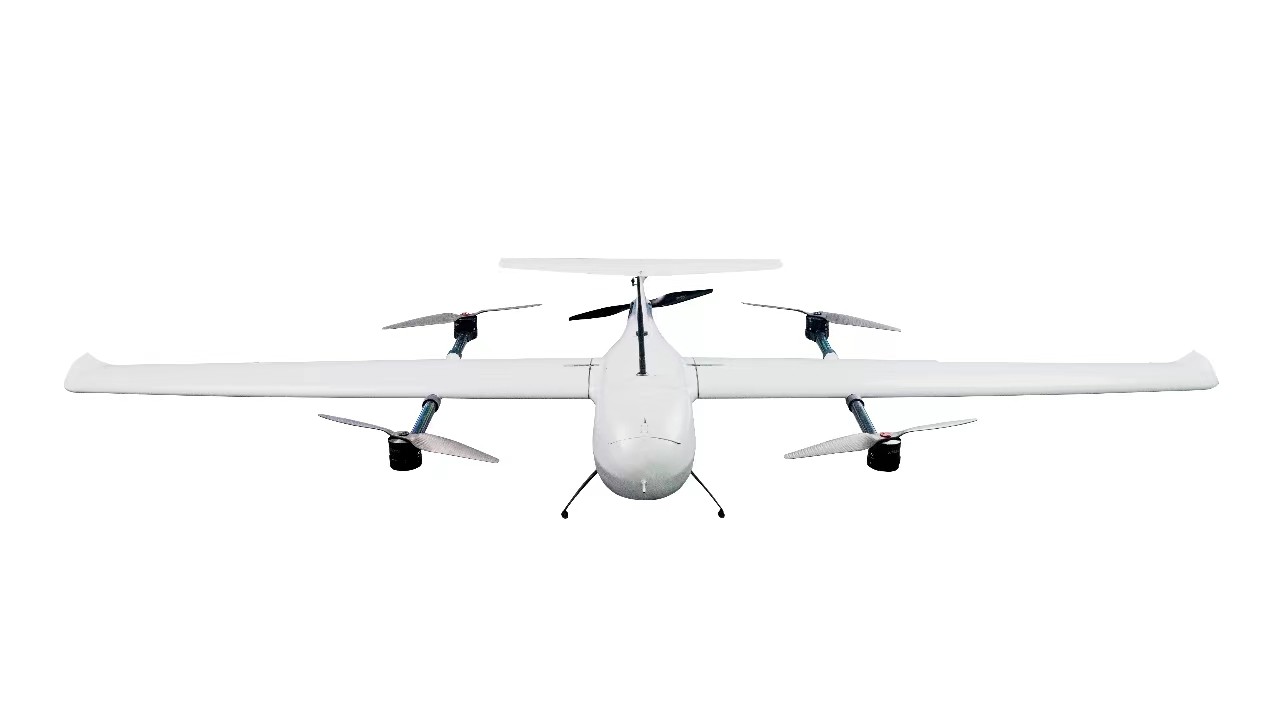

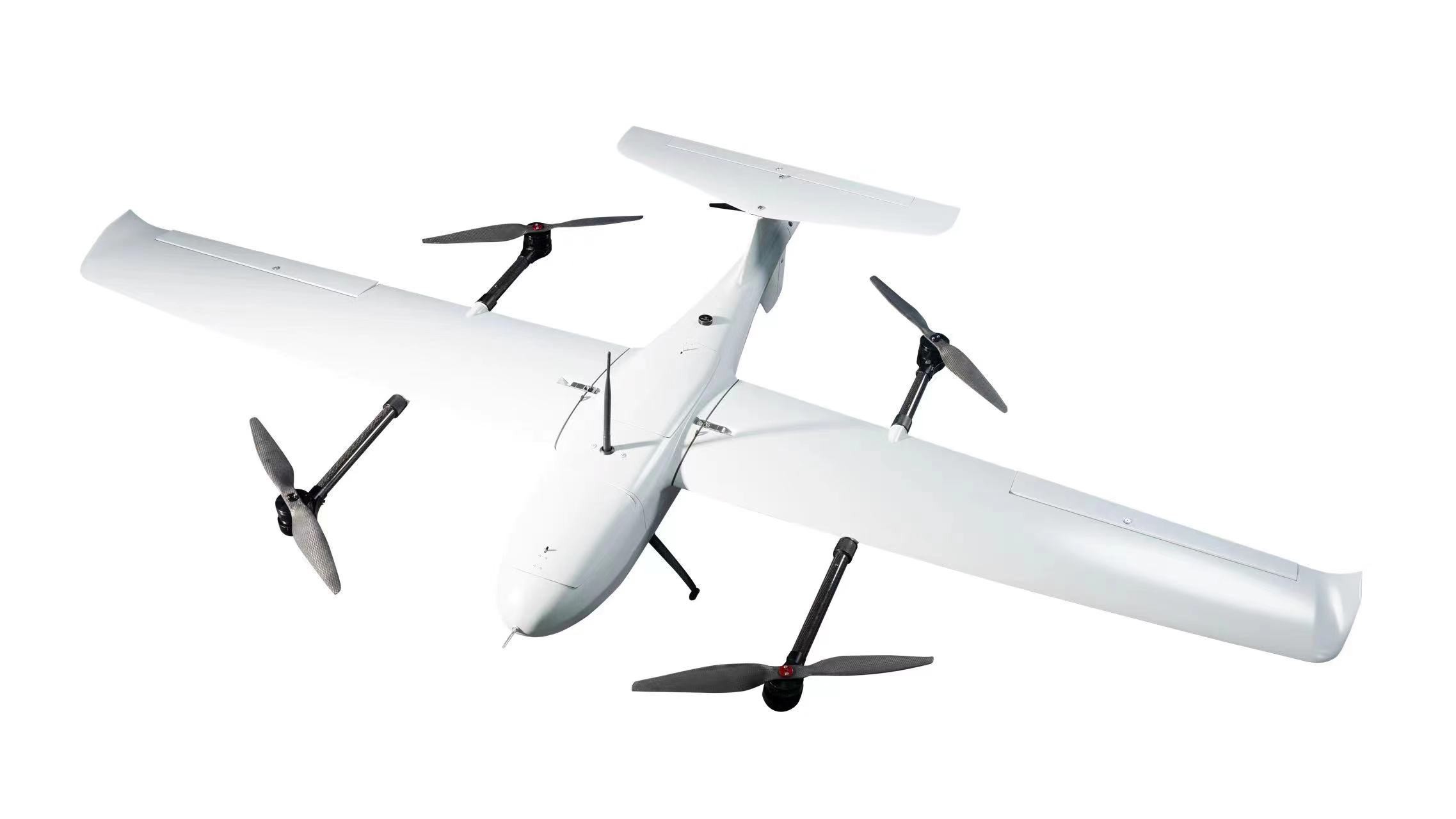

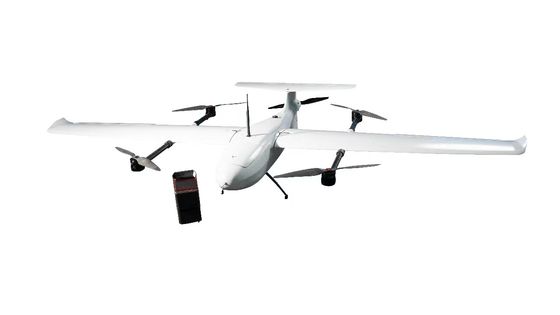

Compact Long Duration Fixed Wing Hybrid Vtol Drone Vertical Takeoff Uav Landing
| Place of Origin | CHN |
|---|---|
| Brand Name | JTUAV |
| Model Number | HS101A-VT-JT-245 |
| Minimum Order Quantity | 1 |
| Packaging Details | 137cm×42cm×47cm |
| Delivery Time | 3-5days |
| Payment Terms | L/C, D/A |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Maximum Flight Weight | 13.5kg | Payload | 3kg |
|---|---|---|---|
| Cruise Speed | 75km/h | Maximum Flight Speed | 120km/h |
| Endurance Time | 240min | Take-off And Landing Mode | Vertical Take-off And Landing |
| Vertical Takeoff Power | Electric Quadrotor | ||
| Highlight | compact vertical takeoff uav,compact fixed wing hybrid vtol drone,electric vertical takeoff uav |
||
Product Description
Long endurance composite wing unmanned aerial vehicle
- Body length: 1.25m Wing span: 2.45m
- Maximum takeoff weight: 13.5kg Maximum payload: 3kg
- Range time: 270min, maximum speed: 120km/h
- Cruise speed: 75km/h Practical ceiling: 5000m
automatic flight on a preplanning route
- Maximum wind resistance: Level 6 takeoff and landing mode: Vertical takeoff and landing
- Transportation dimensions: 1.37 * 0.42 * 0.46 m (length * width * height)
- One machine with multiple functions, suitable for mounting various mission pods
- Can be used in various industries such as large-scale surveying, energy, emergency, police security, transportation, inspection, training, etc
- Specific prices can be discussed privately or in person (independently produced, with preferential treatment for large quantities)
Drone Product Parameter Table:
| Mode | JT-245 |
| Product name | compact long-duration hybrid-wing drone |
| maximum flight weight | 13.5kg |
| payload | 3kg |
| body length | 1250mm |
| wingspan | 2450mm |
| practical ceiling | 5000m |
| cruise speed | 75km/h |
| maximum flight speed | 120km/h |
| endurance time | 240min |
| take-off and landing mode | vertical take-off and landing |
| steady flight power | electric lumber push |
| vertical takeoff power | electric quadrotor |
| body material | composite materials |
| withstand wind level | Lv.6 |
| wireless circuit range | vertical take-off and landing |
| differential system | RTK/PPK |
| transport dimension | 137cm×42cm×47cm |
